Kia Carnival Owners Manual

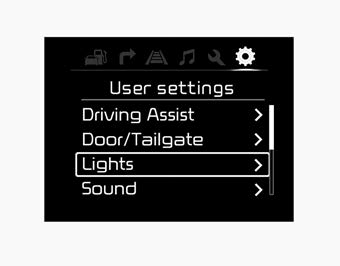

User Settings Mode (for type B/C cluster)
Features of your vehicle / LCD display / User Settings Mode (for type B/C cluster)

Description

Kia Carnival: User Settings Mode (for type B/C cluster). On this mode, you can change setting of the doors, lights, and so on.

On this mode, you can change setting of the doors, lights, and so on.

Driving Assist

Smart Cruise Control Response (if equipped)

Choose the sensitivity of the smart cruise control.

Rear Cross Traffic Alert (if equipped)

If this item is checked, rear cross traffic alert function will be activated.

Forward Collision Warning (if equipped)

If this item is checked, forward collision OYP044161N warning function will be activated.

Door / Tailgate

Automatically unlock

Disable :

The auto door unlock operation will be canceled.

On Key out :

All doors will be automatically unlocked when the ignition key is removed from ignition switch or Engine Start/Stop Button is set to the OFF position.

On shift to P :

All doors will be automatically unlocked if the automatic transaxle shift lever is shifted to the P (Park) position.

Two Press Unlock

Off :

The two press unlock function will be deactivated. Therefore, all doors will unlock if the door is unlocked.

On : The drivers door will unlock if the door is unlocked. When the door is unlocked again within 4 seconds, all doors will unlock.

Horn Feedback

Off :

The Horn feedback operation will be deactivated.

On :

After locking the door by pressing the lock button on the transmitter, if you press the lock button again within 4 seconds, the warning sound will operate once to indicate that all doors are locked.

Smart tailgate (if equipped)

If this item is checked, the smart tailgate function will be activated.

Lights

One touch turn signal

If this item is checked, the lane change signals will blink 3, 5 or 7 times when the turn signal lever is moved slightly.

Head Lamp Delay (if equipped)

If this item is checked, the headlamp delay function will be activated.

Welcome Light (if equipped)

If this item is checked, the welcome light function of the pocket lamp will be activated.

Sound

Park assist system vol. (if equipped) Adjust the Park Assist System volume. (Level 1~3).

Blind spot detection Sound (if equipped)

If this item is checked, the blind spot detection sound function will be activated.

Welcome sound(if equipped)

If this item is checked, the welcome sound function will be activated.

Seat / Steering

Seat easy access (if equipped)

If this item is checked, the drivers seat will automatically move forward or rearward for the driver to enter or exit the vehicle comfortably.

Steering Position

If this item is checked, the warning function regarding the steering wheel alignment will be activated.

Service interval

On this mode, you can activate the service interval function with mileage (mi. or km) and period (months).

  • Off : The service interval function will be deactivated.
  • On :You can set the service interval (mileage and months).

Other features

Fuel economy auto reset

Off :

The average fuel economy will not reset automatically whenever refueling.

On (Auto Reset) :

The average fuel economy will reset automatically when refueling.

For more details, refer to Trip A/B" in this chapter.

Auto rear wiper (reverse)

If this item is checked, the rear wiper will automatically activated when the front wiper is in ON position and shift lever is in R (reverse) position.

Fuel Economy Unit

Choose the fuel economy unit. (US gallon, UK gallon)

Temperature Unit

Convert the temperature unit from C to F or from F to C.

Language

Choose the language you prefer within the LCD.
