Operation of the parking assist system
Features of your vehicle / Parking assist system / Operation of the parking assist system

Operating condition

Kia Carnival: Operation of the parking assist system.

  • This system activates when the parking assist button is pressed with the Engine Start/Stop Button ON.
  • The parking assist button turns on automatically and activates the parking assist system when you shift the gear to the R (Reverse) position.
  • The sensing distance while backing up is approximately 100 cm (39 in.) when you are driving less than 10 km/h (6.2 mph).
  • The sensing distance while moving forward is approximately 100 cm (39 in.) when you are driving less than 10 km/h (6.2 mph).
  • When more than two objects are sensed at the same time, the closest one will be recognized first.

✽ NOTICE

The system may not detect and object if the distance from the object is already less than approximately 25 cm (10 in.) when the system is turned ON.

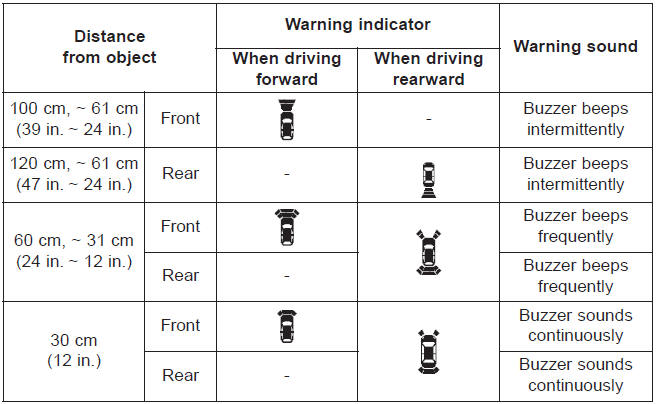

Types of warning sound and indicator

Kia Carnival: Operation of the parking assist system. ✽ NOTICE

✽ NOTICE

The indicator may differ from the illustration as objects or sensors status. If the indicator blinks, the system should be checked by an authorized Kia dealer.
