Headrest (for front seat)
Safety features of your vehicle / Seats / Headrest (for front seat)

Kia Carnival: Headrest (for front seat). The driver's and front passenger's seats are equipped with a headrest for the

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort.

The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a rear collision.

For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

Kia Carnival: Headrest (for front seat). WARNING - Headrest removal/adjustment WARNING - Headrest removal/adjustment

  • Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in a crash.
  • Do not adjust the headrest height while the vehicle is in motion. Driver may lose control of the vehicle.

Adjusting the height up and down

Kia Carnival: Headrest (for front seat). To raise the headrest, pull it up to the desired position (1). To lower the headrest,

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Kia Carnival: Headrest (for front seat). ✽ NOTICE

✽ NOTICE

If you recline the seatback towards the front with the headrest and seat cushion raised, the headrest may come in contact with the sunvisor or other parts of the vehicle.

Removal and reinstallation

Kia Carnival: Headrest (for front seat). Type A

Type A

Kia Carnival: Headrest (for front seat). Type B

Type B

To remove the headrest :

1. Recline the seatback (2) with the recline lever or switch (1).

2. Raise headrest as far as it can go.

3. Press the headrest release button (3) while pulling the headrest up (4).

Kia Carnival: Headrest (for front seat). WARNING WARNING

NEVER allow anyone to ride in a seat with the headrest removed.

Kia Carnival: Headrest (for front seat). Type A

Type A

Kia Carnival: Headrest (for front seat). Type B

Type B

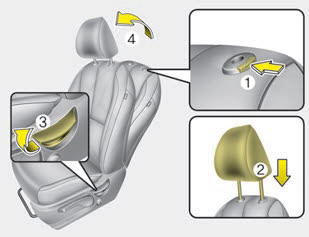

To reinstall the headrest :

1. Put the headrest poles (2) into the holes while pressing the release button (1).

2. Recline the seatback (4) with the recline lever or switch (3).

3. Adjust the headrest to the appropriate height.

Kia Carnival: Headrest (for front seat). WARNING - Headrest Reinstallation WARNING - Headrest Reinstallation

To reduce the risk of injury to the head or neck, always make sure the headrest is locked into position and adjusted properly after reinstalling.
