Outside thermometer
Features of your vehicle / Automatic climate control system / Outside thermometer

Kia Carnival: Outside thermometer.

Kia Carnival: Outside thermometer.

Kia Carnival: Outside thermometer. The current outside temperature is displayed in 1°C (1°F) increments. The temperature

The current outside temperature is displayed in 1°C (1°F) increments. The temperature range is between -40°C ~ 60°C (- 40°F ~ 140°F).

• The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

Air intake control

Kia Carnival: Outside thermometer. This is used to select the outside (fresh) air position or recirculated air position.

This is used to select the outside (fresh) air position or recirculated air position.

To change the air intake control position, push the control button.

Recirculated air position

Kia Carnival: Outside thermometer. With the recirculated air position selected, air from the passenger compartment

With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.

Outside (fresh) air position

Kia Carnival: Outside thermometer. With the outside (fresh) air position selected, air enters the vehicle from outside

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

✽ NOTICE

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) may cause fogging of the windshield and side windows and the air within the passenger compartment may become stale.

In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

Sunroof Inside Air Recirculation

When the heater or air conditioning system is on with the sunroof opened, the outside (fresh) air position will be automatically selected. At this time, if you press the recirculated air position button, the recirculated air position will be selected but will change back to the outside (fresh) air position after 3 minutes.

When the sunroof is closed, the air intake position will return to the original position that was selected.

Kia Carnival: Outside thermometer. WARNING - Reduced visibility WARNING - Reduced visibility

Continued use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility.

Kia Carnival: Outside thermometer. WARNING - Sleeping with AC on WARNING - Sleeping with AC on

Do not sleep in a vehicle with the air conditioning or heating system on as this may cause serious harm or death due to a drop in the oxygen level and/or body temperature.

Kia Carnival: Outside thermometer. WARNING - Recirculated air WARNING - Recirculated air

Continued use of the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.

Fan speed control

Kia Carnival: Outside thermometer. The fan speed can be set to the desired speed by operating the fan speed control

The fan speed can be set to the desired speed by operating the fan speed control button.

To change the fan speed, press (Kia Carnival: Outside thermometer. button for higher speed, or push () the) the button for higher speed, or push (Kia Carnival: Outside thermometer. button for lower speed. To turn the fan speed control off, press the front blower) the button for lower speed. To turn the fan speed control off, press the front blower OFF button.

Air conditioning

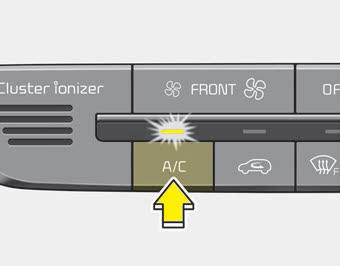

Kia Carnival: Outside thermometer. Press the A/C button to turn the air conditioning system on (indicator light

Press the A/C button to turn the air conditioning system on (indicator light will illuminate).

Press the button again to turn the air conditioning system off.

OFF mode

Kia Carnival: Outside thermometer. Press the front blower OFF button to turn off the front air climate control system.

Press the front blower OFF button to turn off the front air climate control system. However, you can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.

Climate information screen selection (for Type B)

Kia Carnival: Outside thermometer. Press the climate information screen selection button to display climate information

Press the climate information screen selection button to display climate information on the screen.
