Lane departure warning system (LDWS)
Driving your vehicle / Lane departure warning system (LDWS)

Kia Carnival: Lane departure warning system (LDWS).

Kia Carnival: Lane departure warning system (LDWS).

Kia Carnival: Lane departure warning system (LDWS). This system detects the lane with a sensor at the front windshield and notifies

This system detects the lane with a sensor at the front windshield and notifies you if it detects that your vehicle leaves the lane.

Kia Carnival: Lane departure warning system (LDWS). WARNING - LDWS Alert WARNING - LDWS Alert

The LDWS is only intended to provide you with information regarding your vehicle's position on the roadway. Upon receiving an LDWS alert, you must take the necessary steps to maintain control of your vehicle. The LDWS does not provide any steering inputs into the vehicle for you. It can be dangerous to make a large sudden steering input in response to an alert, since that could result in loss of control.

  • The LDWS does not make the vehicle change lanes. It is the driver's responsibility to always check the road conditions.
  • If the sensor cannot detect the lane or if the vehicle speed does not exceed 70 km/h (44 mph), the LDWS will not be able to notify you if the vehicle leaves the lane.
  • If your vehicle has window tint or other types of coating on the front windshield, the LDWS may not work properly.
  • Prevent damage to the LDWS sensor from water or any liquid.
  • Do not remove the LDWS parts and do not damage the sensor by a strong impact.
  • Do not put objects that reflect light on the dash board.
  • The operation of the LDWS can be affected by several factors (including environmental conditions). It is the responsibility of the driver to pay attention to the roadway and to maintain the vehicle in it's lane at all times.

Kia Carnival: Lane departure warning system (LDWS). To operate the LDWS, press the button with the engine start/stop button in the

To operate the LDWS, press the button with the engine start/stop button in the ON position. The indicator (green) illuminates on the cluster. To cancel the LDWS, press the button again.

Kia Carnival: Lane departure warning system (LDWS). When the sensor detects the lane line

When the sensor detects the lane line

Kia Carnival: Lane departure warning system (LDWS). When the sensor doesnТt detect the lane line

When the sensor doesnТt detect the lane line

If the system detects that your vehicle is leaving the lane when the LDWS is operating and vehicle speed exceeds 70 km/h (44 mph), the warning operates as follows:

Kia Carnival: Lane departure warning system (LDWS). Lane departure warning (Left)

Lane departure warning (Left)

Kia Carnival: Lane departure warning system (LDWS). Lane departure warning (Right)

Lane departure warning (Right)

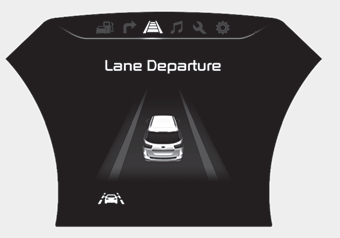

1.Visual warning

If you leave the lane, the lane you leave on the LCD display blinks yellow.

2.Auditory warning

If you leave the lane, the warning sound operates.
