Towing service
What to do in an emergency / Towing / Towing service

Kia Carnival: Towing service. If emergency towing is necessary, we recommend having it done by an authorized

If emergency towing is necessary, we recommend having it done by an authorized Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle. The use of wheel dollies or flatbed is recommended.

For trailer towing guidelines information, refer to УTrailer towingФ in section 5.

It is acceptable to tow the vehicle with the rear wheels on the ground (without dollies) and the front wheels off the ground.

If any of the loaded wheels or suspension components are damaged or the vehicle is being towed with the front wheels on the ground, use a towing dolly under the front wheels.

When being towed by a commercial tow truck and wheel dollies are not used, the front of the vehicle should always be lifted, not the rear.

Kia Carnival: Towing service. WARNING - Side and curtain Air bag WARNING - Side and curtain Air bag

If your vehicle is equipped with side and curtain air bag, set the ignition switch to LOCK or ACC position when the vehicle is being towed.

The side and curtain air bag may deploy when the ignitions is ON, and the rollover sensor detects the situation as a rollover.

Kia Carnival: Towing service.

Kia Carnival: Towing service.

Kia Carnival: Towing service. CAUTION - Towing CAUTION - Towing

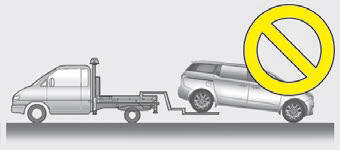

  • Do not tow the vehicle backwards with the front wheels on the ground as this may cause damage to the vehicle.
  • Do not tow with sling-type equipment. Use wheel lift or flatbed equipment.

When towing your vehicle in an emergency without wheel dollies :

1. Set the ignition switch in the ACC position.

2. Place the transaxle shift lever in N (Neutral).

3. Release the parking brake.

Kia Carnival: Towing service. CAUTION - Towing gear position CAUTION - Towing gear position

Failure to place the transaxle shift lever in N (Neutral) may cause internal damage to the transaxle.
