Kia Carnival Owners Manual

Power sliding door and power tailgate
Features of your vehicle / Power sliding door and power tailgate

Kia Carnival: Power sliding door and power tailgate. On the overhead console

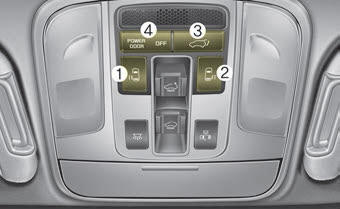

On the overhead console

Kia Carnival: Power sliding door and power tailgate. On the center pillar trim

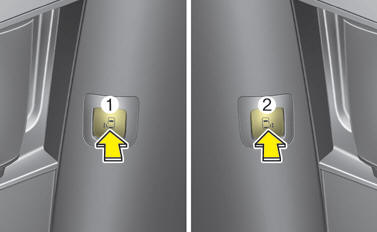

On the center pillar trim

Kia Carnival: Power sliding door and power tailgate. On the tailgate

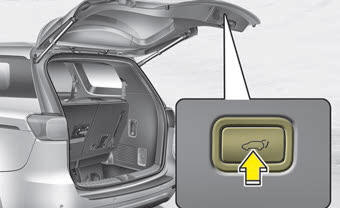

On the tailgate

(1) Left power sliding door control button
(2) Right power sliding door control button
(3) Power tailgate control button*
(4) Power door ON/OFF button

The power sliding doors and power tailgate can be opened and closed automatically with the folding key or smart key, the main control buttons on the overhead console or the sub control buttons on the center pillar trim and the tailgate.

When the power door ON/OFF button is OFF (depressed), the power sliding door and power tailgate can be opened and closed manually by pulling the door handles from inside or outside vehicle.

Kia Carnival: Power sliding door and power tailgate. WARNING - Unattended children/pets WARNING - Unattended children/pets

Never leave children or animals unattended in your vehicle. Children or animals might operate the power sliding door or power tailgate that could result in injury to themselves or others or damage to the vehicle.

✽ NOTICE

If the power sliding door is open approximately 6 hours, the ECU will enter Sleep mode to conserve battery power and the door might not close automatically. Close the door or tailgate manually and then operate the door with the power operating system.

✽ NOTICE

In cold and wet climates, power sliding doors and tailgate may not work properly due to freezing conditions.

✽ NOTICE

When the sliding doors are opened manually (power OFF), more effort will be required to open and close than on non-power sliding doors.

✽ NOTICE

  • The power sliding door and power tailgate can be operated when the engine is not running. However the power operation consumes large amounts of vehicle electric power. To prevent the battery from being discharged, do not operate them excessively.
  • To prevent the battery from being discharged, do not leave the power sliding door and power tailgate at open position for a long lime.
  • When jacking up the vehicle to change a tire or repair the vehicle, do not operate the power sliding door or power tailgate. This could cause the power sliding door or power tailgate to operate improperly.

Kia Carnival: Power sliding door and power tailgate. CAUTION - Operating sliding door/tailgate CAUTION - Operating sliding door/tailgate

Do not apply excessive force while operating the power sliding door or power liftgate (tailgate). This could cause damage to the power sliding door or power liftgate (tailgate).
